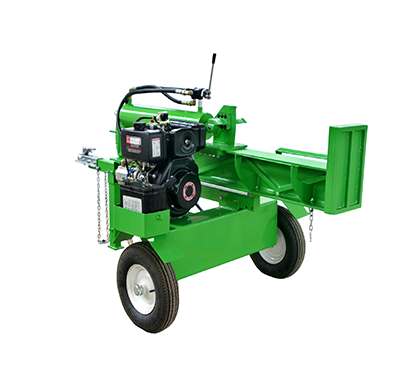

Diesel Log Splitter
SN:FM-01-005
Operation Mode: Used in either a horizontal or vertical position
Engine: 12 Hp Diesel Engine
Max. Splitting Force: 47Ton
Max. Log Size (mm): 610(Length)x650(Diameter)
Cylinder Diameter (inch): 5.5
Ball Coupler (in.): 2" or 50 mm
Pump Output: 22GMP
Automatic Cylinder Return: Yes
Capacity Of Hydraulic Oil: 26L
SHAREProduct Info
1.Specification Parameter
| Operation Mode: | Used in either a horizontal or vertical position | Pre-assembled: | Assembly Required | ||
| Engine: | 12 Hp Diesel Engine | Package Mode: | Steel Pallets | ||
| Max. Splitting Force: | 47Ton | Packing Size (cm): | 200(L)X57(W)X55(H) | ||
| Max. Log Size (mm): | 610(Length)x650(Diameter) | N.W.: | 290kg | ||
| Cylinder Diameter (inch): | 5.5 | Units/20' FCL: | 40PCS | ||
| Ball Coupler (in.): | 2" or 50 mm | Units/40' FCL: | 80PCS | ||
| Pump Output: | 22GMP | Certificate: | GS.CE | ||
| Automatic Cylinder Return: | Yes | Capacity Of Hydraulic Oil: | 26L |
2.Real Shooting
